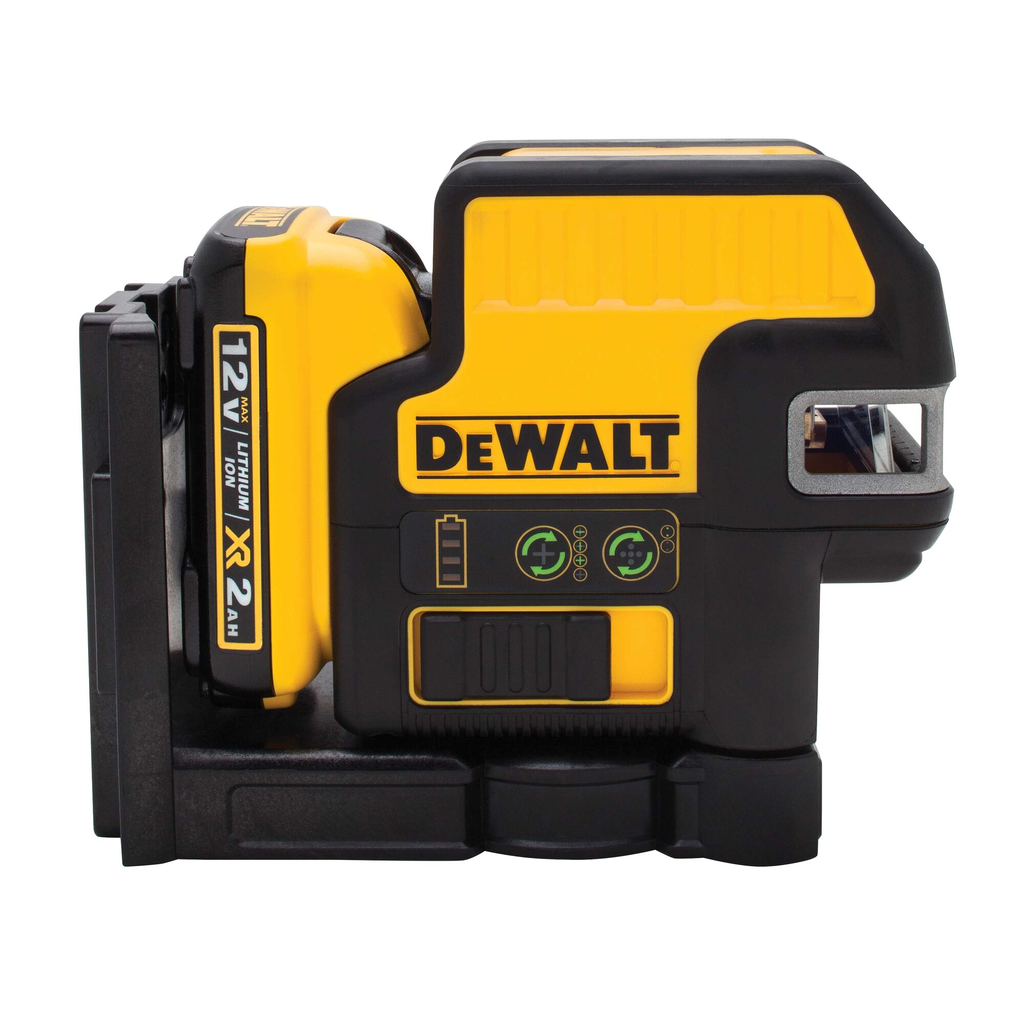

DEWALT 12V MAX 2 Spot Cross Line Green Laser Level with Battery and TSTAK Case – DW0822LG
Taxes calculated at checkout. Free shipping on every order, with no minimum spend.
- Free shipping on every order, with no minimum spend
- 30 days money back guarantee
- Secure checkout
- Support Monday to Friday, 09:00 - 17:00
DEWALT 12V MAX 2 Spot Cross Line Green Laser Level with Battery and TSTAK Case
This DEWALT 12V MAX 2 Spot + Cross Line Green Laser combines two plumb up/down spots with horizontal and vertical cross lines in one green-beam tool. The kit includes a 12V battery, charger, ceiling bracket, target card, enhancement glasses, magnetic enhancement plate, and TSTAK case. It is built for layout, alignment, and leveling on the job site.
Key Features:
- Green Beam Visibility: A highly visible green laser beam improves line and spot visibility on the job site.
- Spot and Cross Line: Provides up/down plumb spots plus horizontal and vertical cross lines for multiple applications.
- Long Working Range: Indoor spot range of 150 ft. and a 165 ft. line working range with a detector.
- Jobsite Durability: IP65 debris and water resistance rating with a 2-meter drop rating and over-molded housing.
- Flexible Mounting: Integrated bracket with 1/4 in.-20 and 5/8 in.-11 thread mounts and a locking pendulum.
- Detector Ready: Full-time pulse mode enables use with a laser detector in bright conditions.
- Complete Kit: Ships with 12V battery, charger, ceiling bracket, target card, glasses, plate, and TSTAK case.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | DEWALT |
| Manufacturer model | DW0822LG |
| UPC | 885911492232 |
| Sell unit | 1 laser kit with 12V battery, charger, bracket, accessories, and TSTAK case |
| Material | Plastic over-molded housing |
| Color / finish | Black and yellow |
| Power source | 12V MAX lithium-ion battery (cordless) |
| Laser beam color | Green |
| Accuracy | ±0.125 in. (up to 1/8 in. at 30 ft.) |
| Indoor spot range | 150 ft. |
| Working range (with detector) | 165 ft. |
| Drop rating | 2 m |
| Ingress rating | IP65 debris/water resistance |
| Mounting | 1/4 in.-20 and 5/8 in.-11 thread mounts, integrated bracket |
| Height | 7 in. |
| Width | 17 in. |
| Length | 13 in. |
| Weight | 7.737 lb |
| Country of origin | China |
Fit and Compatibility:
The laser uses DEWALT 12V MAX batteries and is compatible with DEWALT 12V/20V MAX chargers; additional batteries and chargers are optional accessories sold separately. It mounts to 1/4 in.-20 and 5/8 in.-11 threaded accessories and includes a magnetic enhancement plate and integrated bracket.
Frequently Asked Questions (FAQ):
Q: What is included in the box?
A: The kit includes the DW0822LG laser, 12V battery, charger, ceiling bracket, target card, enhancement glasses, magnetic enhancement plate, and a TSTAK case.
Q: How accurate is it?
A: Rated accuracy is ±0.125 in., or up to 1/8 in. at 30 ft.
Q: How far can I use it?
A: It has a 150 ft. indoor spot range and a 165 ft. working range for lines when used with a detector.
Q: Is it durable on the job site?
A: Yes, it carries an IP65 debris/water resistance rating, a 2-meter drop rating, and an over-molded housing with a locking pendulum.
Q: What battery does it use?
A: It runs on a DEWALT 12V MAX lithium-ion battery, which is included; extra DEWALT 12V batteries and chargers are optional accessories.
Q: Can I mount it on a tripod?
A: Yes, it has 1/4 in.-20 and 5/8 in.-11 thread mounts plus an integrated bracket for attachment to tripods and brackets.
Product Overview
Green beams are noticeably easier to see indoors than red, making this a good all-around choice for framing layout, drywall, drop ceilings, and plumbing points with the up/down spots. Use full-time pulse mode with a detector when you need the 165 ft. range or work in bright light. Engage the locking pendulum during transport to protect the self-leveling mechanism.
Never view the laser beam directly or aim it at eyes, and follow the manufacturer's laser safety instructions during use.
Order the DEWALT 12V MAX 2 Spot Cross Line Green Laser kit for precise layout on every job.
