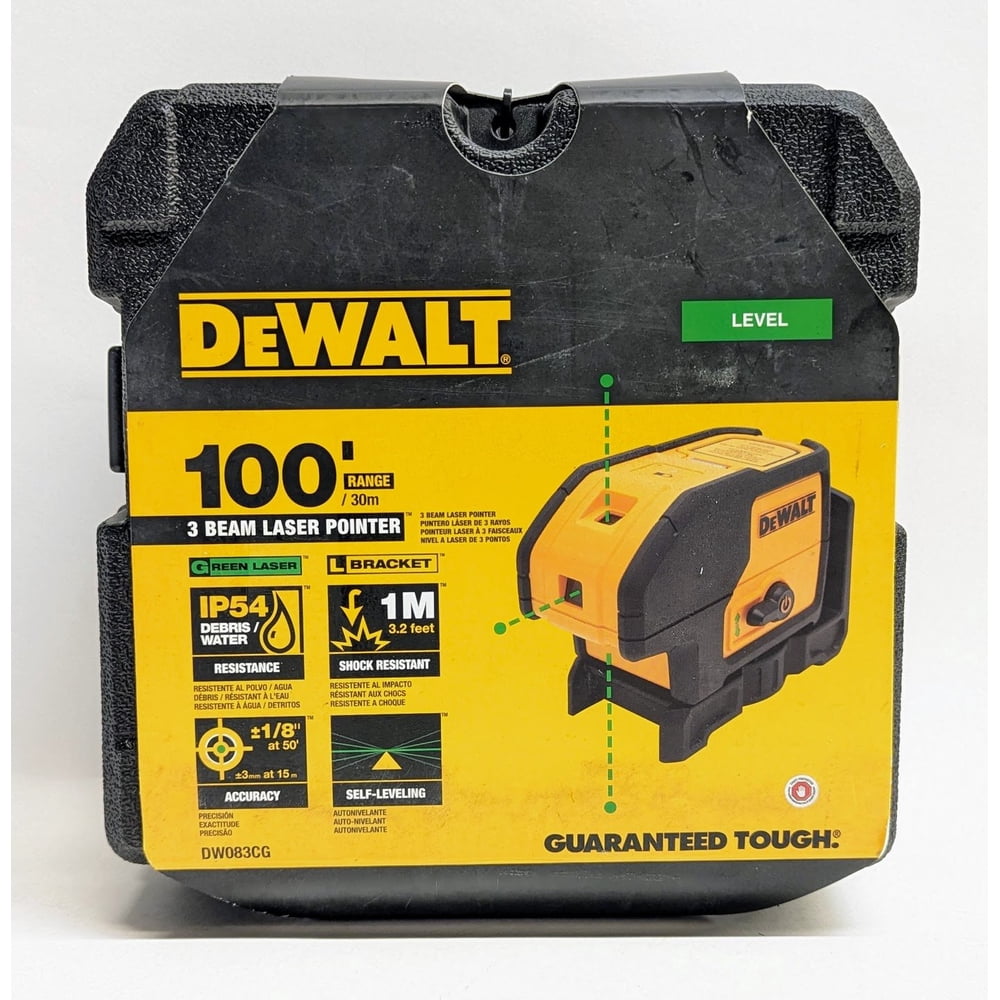

DEWALT Green Beam 3 Spot Laser Level, ±1/8 in. Accuracy at 30 ft., Self-Leveling with Magnetic Bracket – DW083CG
Taxes calculated at checkout. Free shipping on every order, with no minimum spend.
- Free shipping on every order, with no minimum spend
- 30 days money back guarantee
- Secure checkout
- Support Monday to Friday, 09:00 - 17:00
DEWALT Green Beam 3 Spot Laser Level, ±1/8 in. Accuracy at 30 ft., Self-Leveling with Magnetic Bracket
The DEWALT DW083CG Green Beam 3 Spot Laser delivers three self-leveling green laser spots with ±1/8 in. accuracy at 30 ft. and a 100 ft. working range. It includes a built-in magnetic pivoting bracket for mounting on metal surfaces, a locking pendulum and 4 AA batteries. It offers the features of the DW083K with a high-visibility green beam.
Key Features:
- Green beam visibility: The high-visibility green beam is easier to see than red on the job site.
- 3 laser spots: Three self-leveling spots handle plumb, level and square layout tasks.
- Jobsite accuracy: Accuracy is ±1/8 in. at 30 ft. with a 100 ft. visible and working range.
- Magnetic bracket: An integrated magnetic pivoting bracket mounts easily on metal surfaces for easier set-up.
- Locking pendulum: A single lever power switch locks the pendulum in the off position for added durability in transport.
- Jobsite tough: Rated for 1 m drops and protected to IP54 against dust and water.
- Cordless power: Runs cordless on AA batteries.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | DEWALT |
| Manufacturer model | DW083CG |
| Sell unit | 1 laser level with magnetic bracket and batteries |
| Material | Plastic and rubber overmold housing (yellow/black) |
| Color / finish | DEWALT yellow and black |
| Laser type | Spot laser level, 3 green beam spots |
| Accuracy | ±1/8 in. at 30 ft. |
| Working range | 100 ft. |
| Laser class | Class 2, <=1.5mW @ 510-530nm |
| Self-leveling | Yes, with locking pendulum |
| Drop rating | 1 m |
| IP rating | IP54 |
| Power source | Cordless, AA alkaline batteries |
| Batteries required | 4 (one retailer lists 2; manufacturer lists 4 total) |
| Batteries included | 1 AA battery included (per manufacturer includes list) |
| Charger included | No |
| Includes | Magnetic pivoting bracket and instruction manual |
Fit and Compatibility:
The integrated magnetic pivoting bracket attaches to metal surfaces and framing; DEWALT tripods and laser accessories are sold separately. Batteries power the unit directly, so DEWALT 20V battery platforms are not required.
Frequently Asked Questions (FAQ):
Q: What is included in the box?
A: It includes the laser with integrated magnetic pivoting bracket, an instruction manual and AA batteries; a charger is not needed.
Q: How accurate is it and how far does it reach?
A: Accuracy is ±1/8 in. at 30 ft., and the visible and working range is 100 ft.
Q: Why a green beam instead of red?
A: Green beams are typically easier to see on the job site, especially in bright conditions.
Q: How is it powered?
A: It is cordless and runs on AA alkaline batteries.
Q: Can it survive a fall or rain?
A: It is rated for 1 m drops and carries an IP54 rating for dust and water resistance.
Q: How does it mount?
A: The built-in magnetic pivoting bracket mounts easily on metal surfaces.
Product Overview
The three-spot layout is ideal for transferring points wall to wall and floor to ceiling on tasks like electrical boxes, partition walls and tile layout. Use the magnetic bracket on studs and door frames to free both hands, and engage the pendulum lock before moving the tool to protect the leveling mechanism. If you need line projection for long runs of wall tile or drop-ceiling work, step up to a cross-line or multi-line laser instead.
Do not stare directly into the laser beam or view it with optical instruments — this Class 2 laser can cause eye injury with direct exposure.
Lay out plumb and level points faster with the DEWALT DW083CG Green Beam 3 Spot Laser.
